Description

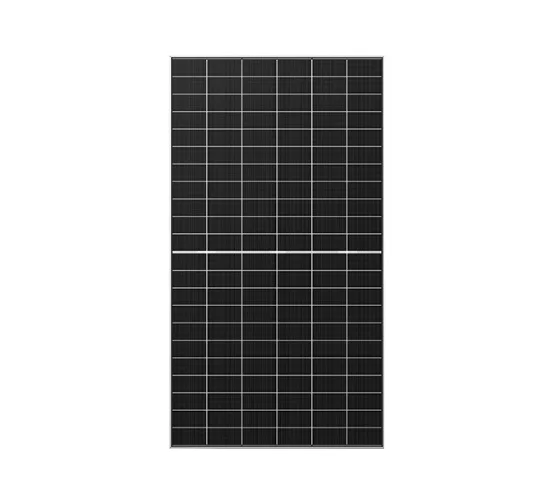

The Canadian Solar TOPBiHiKu7 715W Bifacial Solar Panel is a high-power N-type TOPCon module developed for commercial, industrial, and utility-scale solar installations. Its bifacial glass-glass construction generates electricity from both the front and rear sides, allowing additional energy production from reflected sunlight.
The CS7N-715TB-AG delivers a rated front-side output of 715W with a module efficiency of 23.0%. Depending on installation structure, ground reflectivity, height, and tilt angle, bifacial gain can increase the effective power output to approximately 751W at 5% gain, 787W at 10% gain, and 858W at 20% gain.
The module uses 132 N-type TOPCon cells and features excellent anti-PID and anti-LeTID performance for reduced degradation and dependable long-term energy yield. Its low -0.29%/°C temperature coefficient supports better performance in hot climates.
Built with 2.0 mm heat-strengthened front and rear glass, an anodized aluminium frame, and an IP68 junction box, the panel is designed to withstand demanding outdoor environments. It supports a snow load of up to 5400 Pa and a wind load of up to 2400 Pa. Canadian Solar provides a 12-year product warranty and a 30-year linear power performance warranty.
| Specification | Details |
|---|---|
| Brand | Canadian Solar |
| Series | TOPBiHiKu7 |
| Model | CS7N-715TB-AG |
| Rated Maximum Power (Pmax) | 715W |
| Cell Technology | N-Type TOPCon |
| Module Type | Bifacial Dual-Glass |
| Cell Arrangement | 132 Cells, 2 × (11 × 6) |
| Module Efficiency | 23.0% |
| Optimum Operating Voltage (Vmp) | 40.6V |
| Optimum Operating Current (Imp) | 17.63A |
| Open-Circuit Voltage (Voc) | 48.5V |
| Short-Circuit Current (Isc) | 18.64A |
| Power Tolerance | 0 to +10W |
| Power Bifaciality | 80%, tolerance ±5% |
| Output at 5% Bifacial Gain | 751W |
| Output at 10% Bifacial Gain | 787W |
| Output at 20% Bifacial Gain | 858W |
| NMOT Maximum Power | 541W |
| NMOT Operating Voltage | 38.4V |
| NMOT Operating Current | 14.09A |
| NMOT Open-Circuit Voltage | 45.9V |
| NMOT Short-Circuit Current | 15.03A |
| Maximum System Voltage | 1500V IEC/UL or 1000V IEC/UL |
| Maximum Series Fuse Rating | 35A |
| Operating Temperature Range | -40°C to +85°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.05%/°C |
| Nominal Module Operating Temperature | 41 ±3°C |
| Module Dimensions | 2384 × 1303 × 33 mm |
| Module Weight | 37.8 kg |
| Front Glass | 2.0 mm heat-strengthened glass with anti-reflective coating |
| Rear Glass | 2.0 mm heat-strengthened glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68, 3 Bypass Diodes |
| Cable Size | 4.0 mm² IEC / 12 AWG UL |
| Cable Length | +410 mm / -250 mm, or customized |
| Connector | T6, MC4-EVO2 or MC4-EVO2A |
| Maximum Snow Load | 5400 Pa |
| Maximum Wind Load | 2400 Pa |
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years |
| First-Year Degradation | No more than 1% |
| Annual Degradation After Year One | No more than 0.4% |
